Practice EKG Rhythm Strips 176
Identify the following rhythms.
2.
3.
4.
.jpg)
5.
.jpg)
The rhythm is irregular due to the PVCs. There is complete AV dissociation. The atrial rhythm is slightly irregular with a rate of 100/min. The ventricular rhythm is irregular with a rate of 33/min. The P waves are upright and show no relationship to the QRS complexes. There are unifocal PVCs every 3rd beat. PR: ---, QRS: .14 sec, QT: .44 sec.
2.
This rhythm is irregular with a rate of 70/min. No P waves are present. There are flutter/fibrillatory waves between the QRS complexes. Two unifocal PVCs are present, the 3rd and 7th complexes. PR: ---, QRS: .10 sec, QT: .36 sec.
3.
The rhythm is irregular due to the transition between demand and paced beats. The rate is 80/min. No P waves are present but there appears to be flutter waves between the complexes. No ectopic beats are noted. Biventricular pacer spikes are seen before the paced QRS complexes. PR: ---, QRS: .12 sec, QT: .40 sec.
4.
The rhythm is irregular due to the PVC and the rate is 70/min. Upright P waves precede the QRS complexes. The 3rd beat is a PVC that is followed by a compensatory pause. PR: .20 sec, QRS: .06 sec, QT: .40 sec.
5.
The rhythm is regular with a rate of 166/min. No P waves are clearly seen. No ectopic beats can be identified. The narrow QRS complexes suggest that this rhythm is supraventricular in origin. PR: ---, QRS: .08, QT: .28 sec.
1.
2.
3.
4.
5.
Answers
1.
 |
| Complete heart block with trigeminal PVCs |
The rhythm is irregular due to the PVCs. There is complete AV dissociation. The atrial rhythm is slightly irregular with a rate of 100/min. The ventricular rhythm is irregular with a rate of 33/min. The P waves are upright and show no relationship to the QRS complexes. There are unifocal PVCs every 3rd beat. PR: ---, QRS: .14 sec, QT: .44 sec.
2.
 |
| Atrial fibrillation |
This rhythm is irregular with a rate of 70/min. No P waves are present. There are flutter/fibrillatory waves between the QRS complexes. Two unifocal PVCs are present, the 3rd and 7th complexes. PR: ---, QRS: .10 sec, QT: .36 sec.
3.
 |

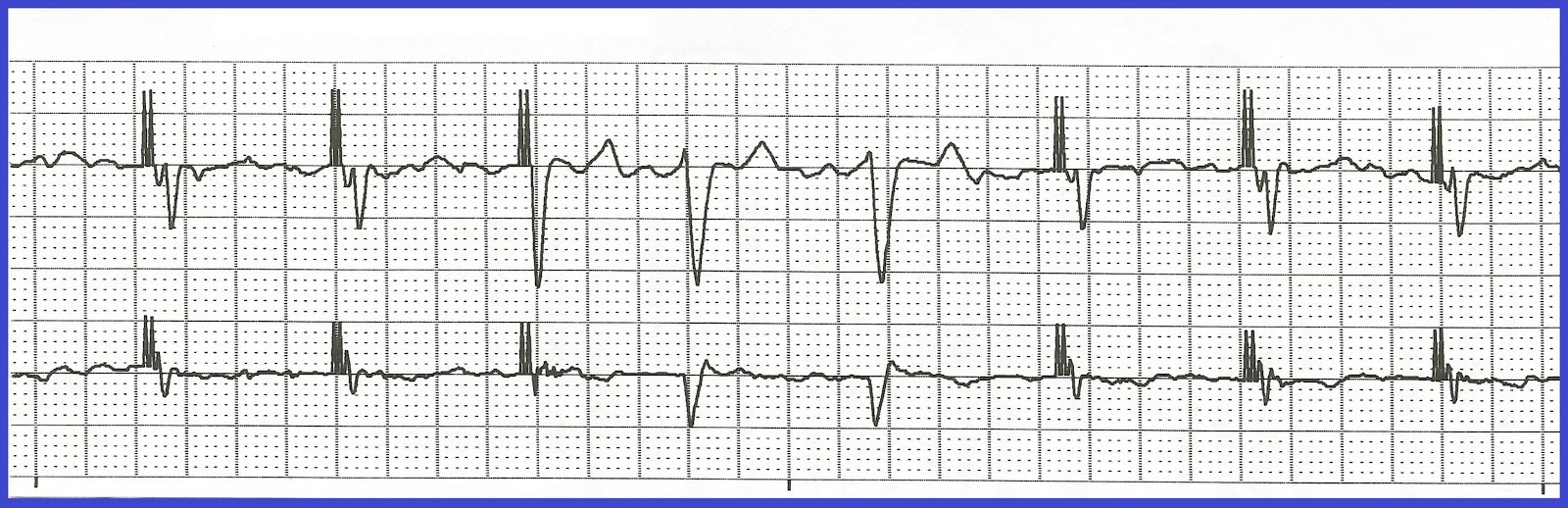

| Demand biventricular pacing |
The rhythm is irregular due to the transition between demand and paced beats. The rate is 80/min. No P waves are present but there appears to be flutter waves between the complexes. No ectopic beats are noted. Biventricular pacer spikes are seen before the paced QRS complexes. PR: ---, QRS: .12 sec, QT: .40 sec.
4.
 |
| Normal sinus rhythm with a PVC |
The rhythm is irregular due to the PVC and the rate is 70/min. Upright P waves precede the QRS complexes. The 3rd beat is a PVC that is followed by a compensatory pause. PR: .20 sec, QRS: .06 sec, QT: .40 sec.
5.
 |
| Supraventricular tachycardia |
The rhythm is regular with a rate of 166/min. No P waves are clearly seen. No ectopic beats can be identified. The narrow QRS complexes suggest that this rhythm is supraventricular in origin. PR: ---, QRS: .08, QT: .28 sec.
